Table of Contents
SkyPulse®, Designed for Intelligent Dentistry
Three Models to Choose From
| Platform module | SkyPulse Endo | SkyPulse Plus | SkyPulse Multi |
|---|---|---|---|
| Wavelength | Er:YAG (2940 nm) | Er:YAG (2940 nm) | Er:YAG + Diode* |
| Power | 1.5 W | 4.2 W | 4.2 W |
| Repetition | 2 – 40 Hz | 2 – 40 Hz | 2 – 40 Hz |
| Modes | AutoSWEEPS, R-SWEEPS, SSP ENDO, USP ENDO, SP | AutoSWEEPS, R-SWEEPS, SSP ENDO, USP ENDO, SSP, MSP, SP, LP, VLP, QSP | AutoSWEEPS, R-SWEEPS, SSP ENDO, USP ENDO, SSP, MSP, SP, LP, VLP, QSP, TANDEM |
| Spray | No | Yes | Yes |
SkyPulse Features
- Modern, easy-to-use graphical user interface
- Er:YAG laser handpiece
- Feather-light and flexible UNIFlex arm
- Diode laser modules
- Unique TANDEM solution
- Wide selection of diode modules
- Optional diode laser handpiece
- Wireless footswitch
- SkyPulse trolley
Modern, easy-to-use graphical user interface
- An advanced touchscreen user interface features intuitive, easy-to-use navigation that guides the user through all treatments and puts an entire range of applications at your fingertips.
- Responsive parameter control and user-friendly application wizards guide the user with recommended parameters.
- Fully customizable memory storage is provided for pre-set treatments.
- A procedure log keeps track of all procedures for quick recall of past treatment parameters according to calendar date or patient name/designation.
- A Control Panel tracks all procedure statistics during treatments.
- Additional features: Favorites, History, Calendar.

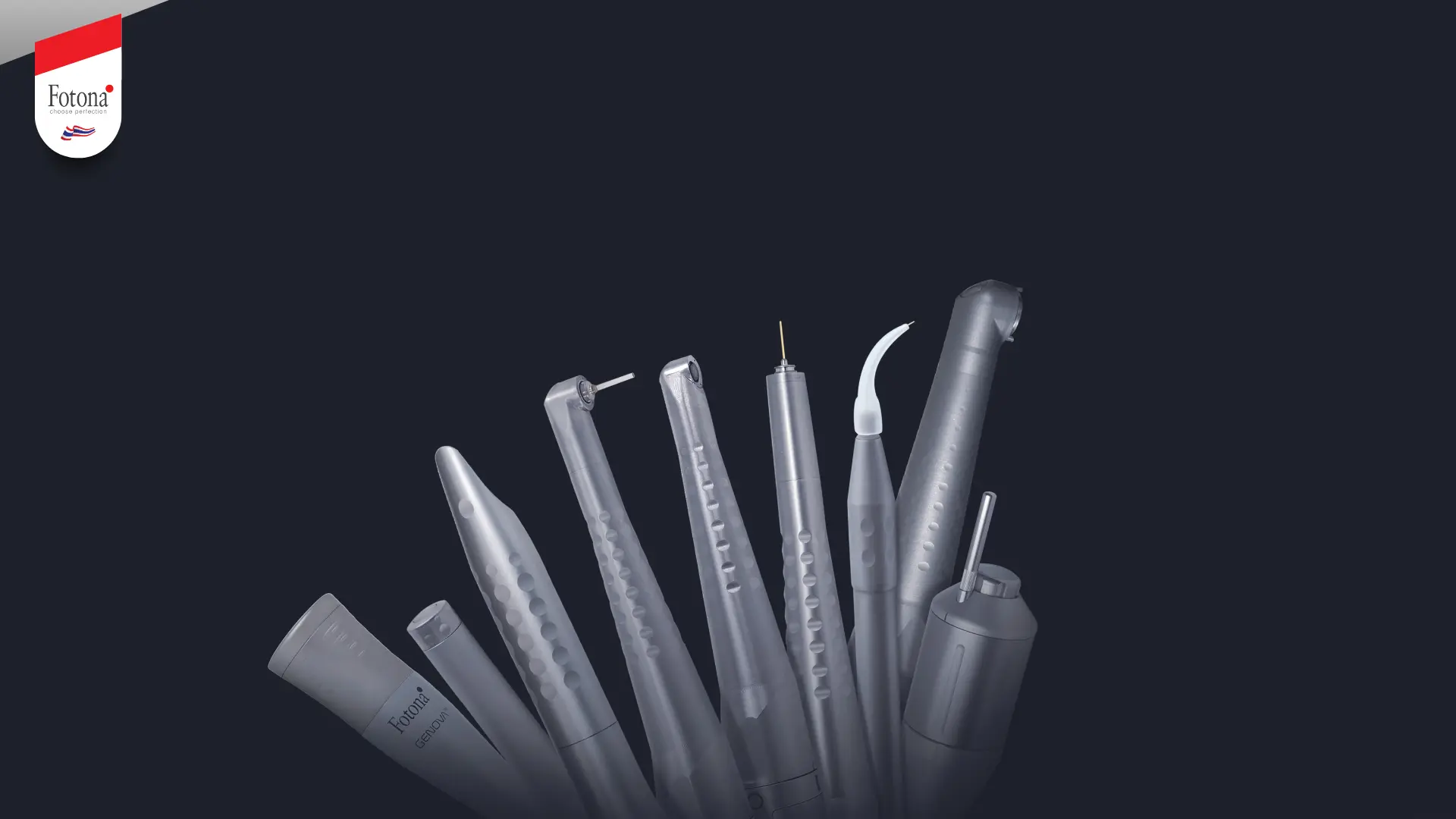

Er:YAG laser handpiece

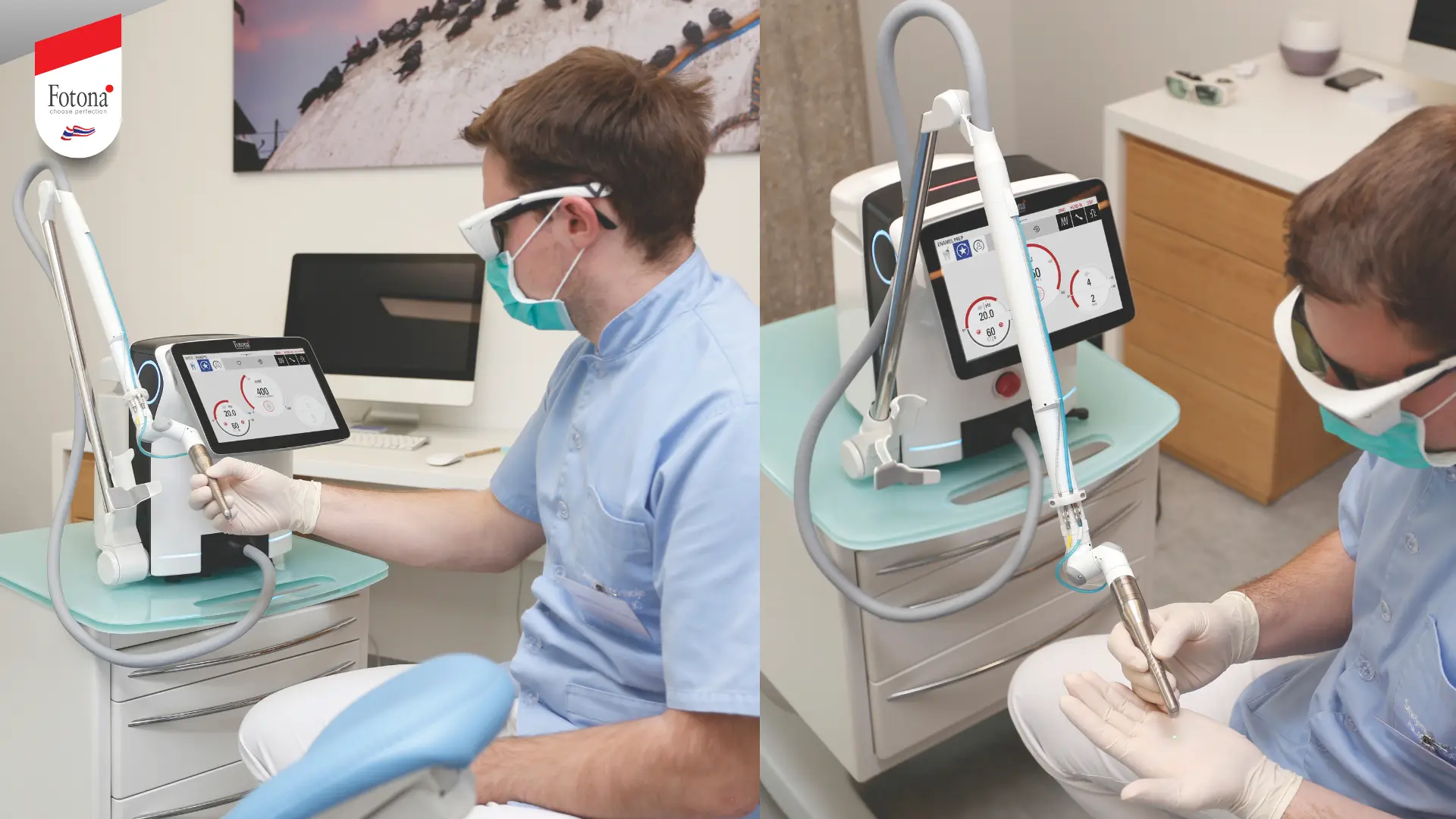

Feather-light and flexible UNIFlex arm
SkyPulse’s unique, articulated UNIFlex delivery system makes the handling of the 360° swivel handpiece extremely flexible and virtually without resistance, eliminating fatigue and enabling easy access to any treatment site.

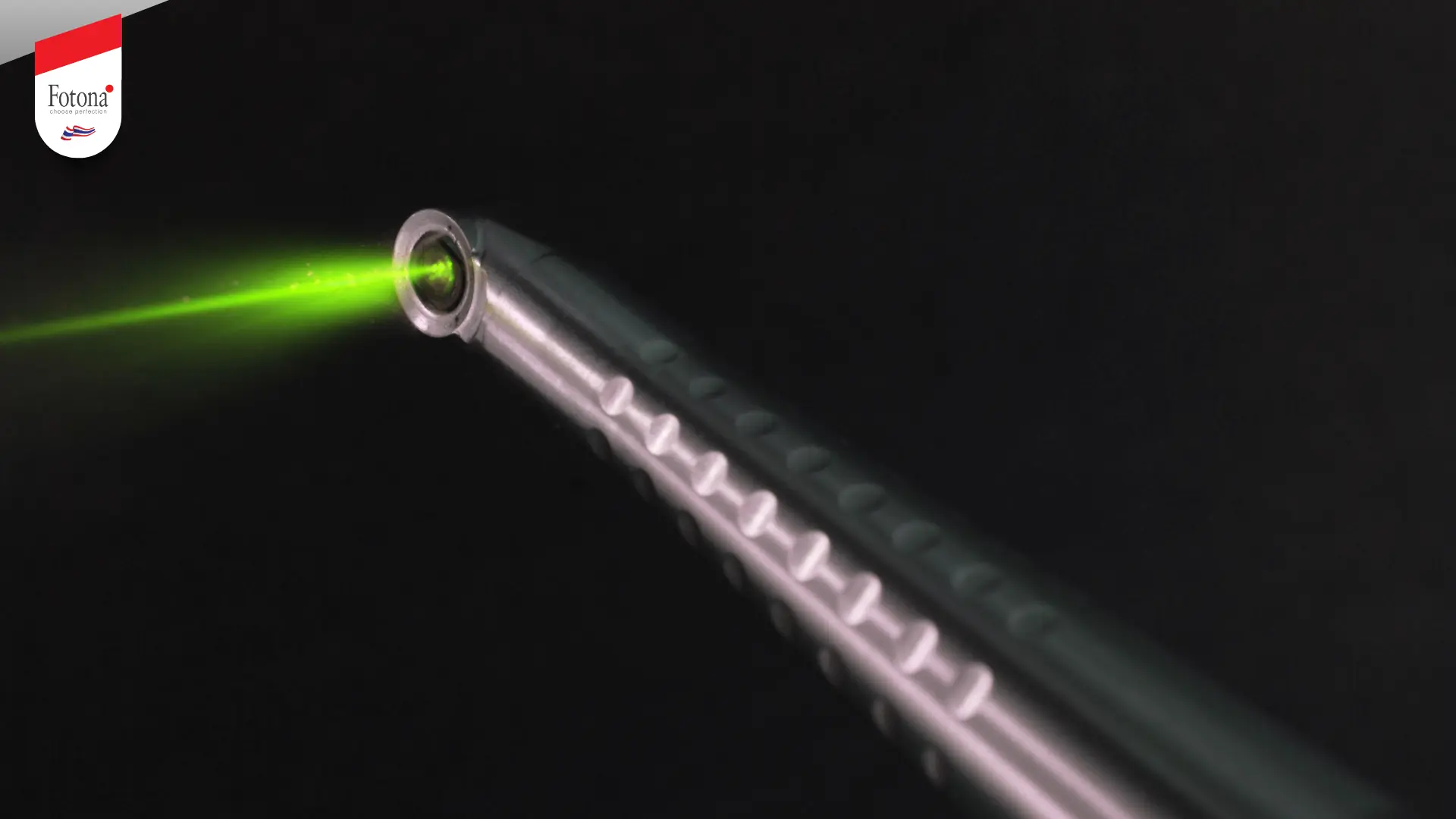

Diode laser modules
SkyPulse’s unique design allows additional high-performance diode module accessories for the broadest range of diode laser wavelengths. Diode lasers are increasingly being used in dentistry as a supplement to conventional therapy. They are used for disinfection in many different clinical situations, and with higher power-generating capacities they can also be used in surgical procedures, providing significant advantages such as greater surgical precision, bloodless operating fields, sterilization of the surgical area, and minimal swelling, while significantly reducing or altogether eliminating post-surgical pain. Multiple laser sources consist of compact diode laser modules that emit laser light at several possible wavelengths or combinations of wavelengths in Continuous Wave (CW) or Pulse operation mode. The laser parameters, such as power, duty cycle or pulse duration, frequency and time, can be set directly on the application screen.
Unique TANDEM solution
Fotona‘s unique TANDEM technological solution offers combined action of two diode wavelengths in one treatment. In this way, dentists can perform soft tissue ablation with simultaneous coagulation and disinfection, or simultaneous photobiomodulation of the target tissue for superior treatment outcomes.
Wide selection of diode modules
SkyPulse’s unique design allows additional high-performance diode-module accessories for the broadest range of diode
laser wavelengths and soft-tissue treatment options (now also available with TANDEM). Special single, duplet and triplet diode modules are available for photobiomodulation of superficial and deeper layers of tissue and for superior surgical cutting and haemostasis.

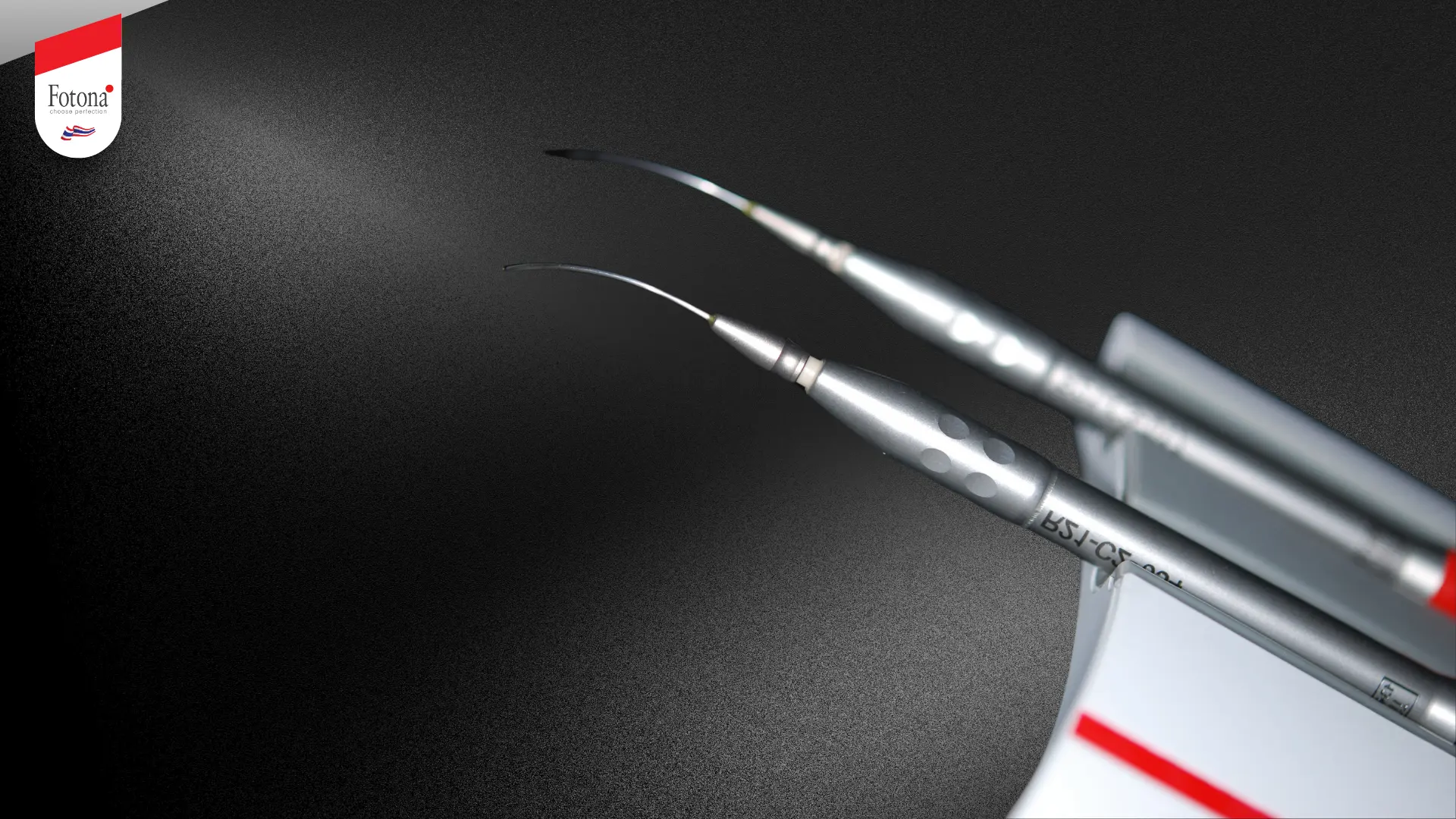

Optional diode laser handpiece
Fotona Diode lasers can be used either in contact or non-contact mode. Energy is delivered through a flexible quartz fiber (fiber-optic beam delivery unit) with the corresponding handpieces. The equipment configuration of the system includes (only for the Multi or Plus models upgraded with a diode) an optical fiber assembly with 300 or 400 µm diameter fiber, with the corresponding R21-C3 handpiece, and a 945 µm diameter fiber with the corresponding MarCco handpieces.
Wireless footswitch
Laser treatment can be initiated with a wireless footswitch to avoid unnecessary tangling of cables on the operating room floor. The wireless footswitch is a perfect complement to your Fotona system, providing more freedom of movement during treatments.
SkyPulse trolley
Perfectly complementing SkyPulse’s Red Dot Award winning design, the Slim (SkyPulse) trolley is situated on four wheels, allowing for easy maneuvering in all directions.
